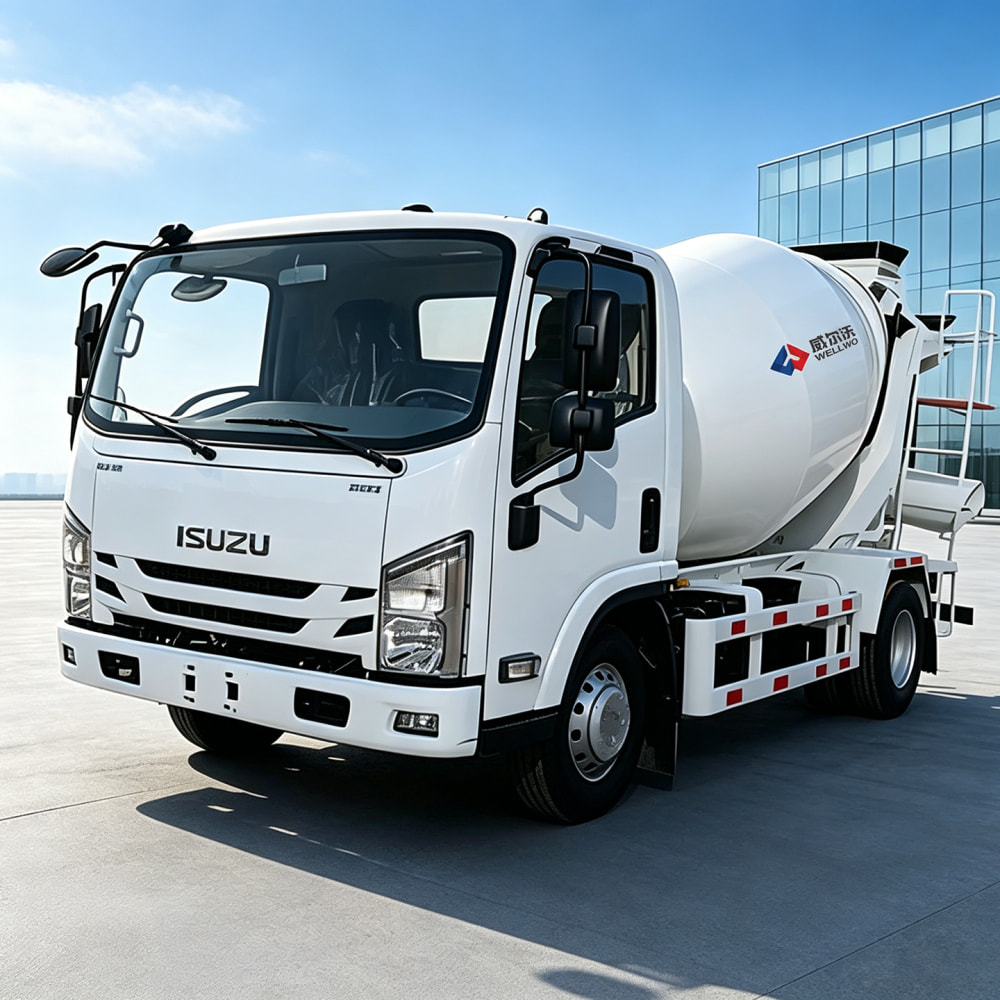

A compact 3m³ Isuzu concrete mixer truck with 4×2 drive, Q345B mixing tank and 6100 × 2100 × 3000mm vehicle size.
A compact 3m³ Isuzu concrete mixer truck with 4×2 drive, Q345B mixing tank and 6100 × 2100 × 3000mm vehicle size.
Small construction sites, urban concrete transport, rural construction, road repair and short-distance mixing delivery.
| Chassis Brand | Isuzu |
|---|---|
| Engine Model | 4JD25Q6H |
| Engine Power | 112 kW |
| Drive Form | 4×2 |
| Wheelbase | 3360 mm |
| Gearbox | Isuzu 6-speed gearbox |
| Overall Vehicle Dimensions | 6100 × 2100 × 3000 mm |
| Total Mass | 4495 kg |
| Curb Weight | 2200 kg |
| Rated Stirring Volume | 3 m³ |
| Tank Geometric Volume | 6.1 m³ |
| Tank Material | Q345B-4mm |
| End Cap | Q345B-6mm |
| Top Speed | 110 km/h |
| Water Tank Capacity | 180 L |
| Rated Hydraulic Pressure | 20 MPa |
Need quotation or customization? Contact Wellwo for configuration, delivery and OEM options.
Send the model, market, quantity and destination. This page is set up for direct product inquiry, not generic browsing.
