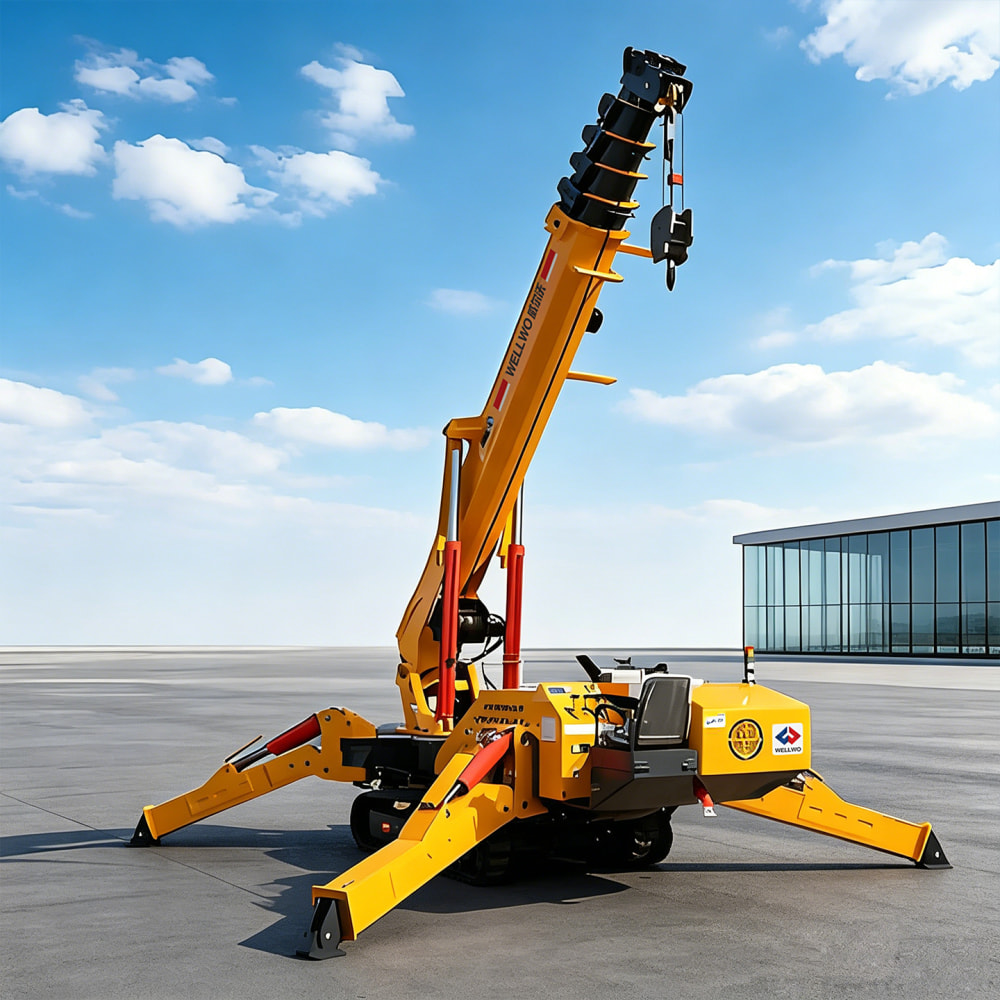

An 8T crawler spider crane with 17.5m maximum lift, 16m working radius and 5-stage hexagonal telescopic boom.
An 8T crawler spider crane with 17.5m maximum lift, 16m working radius and 5-stage hexagonal telescopic boom.
Construction lifting, curtain wall installation, steel structure work, factory maintenance, bridge and equipment installation.
| Specification | 8T |
|---|---|
| Maximum Working Radius | 16m × 1.0T |
| Maximum Lift | 17.5m (4 ropes) |
| Maximum Underground Head | 80m |
| Hook Rising Speed | Slow 6.5 m/min; Fast 12 m/min |
| Wire Rope | Φ11mm × 80m max |

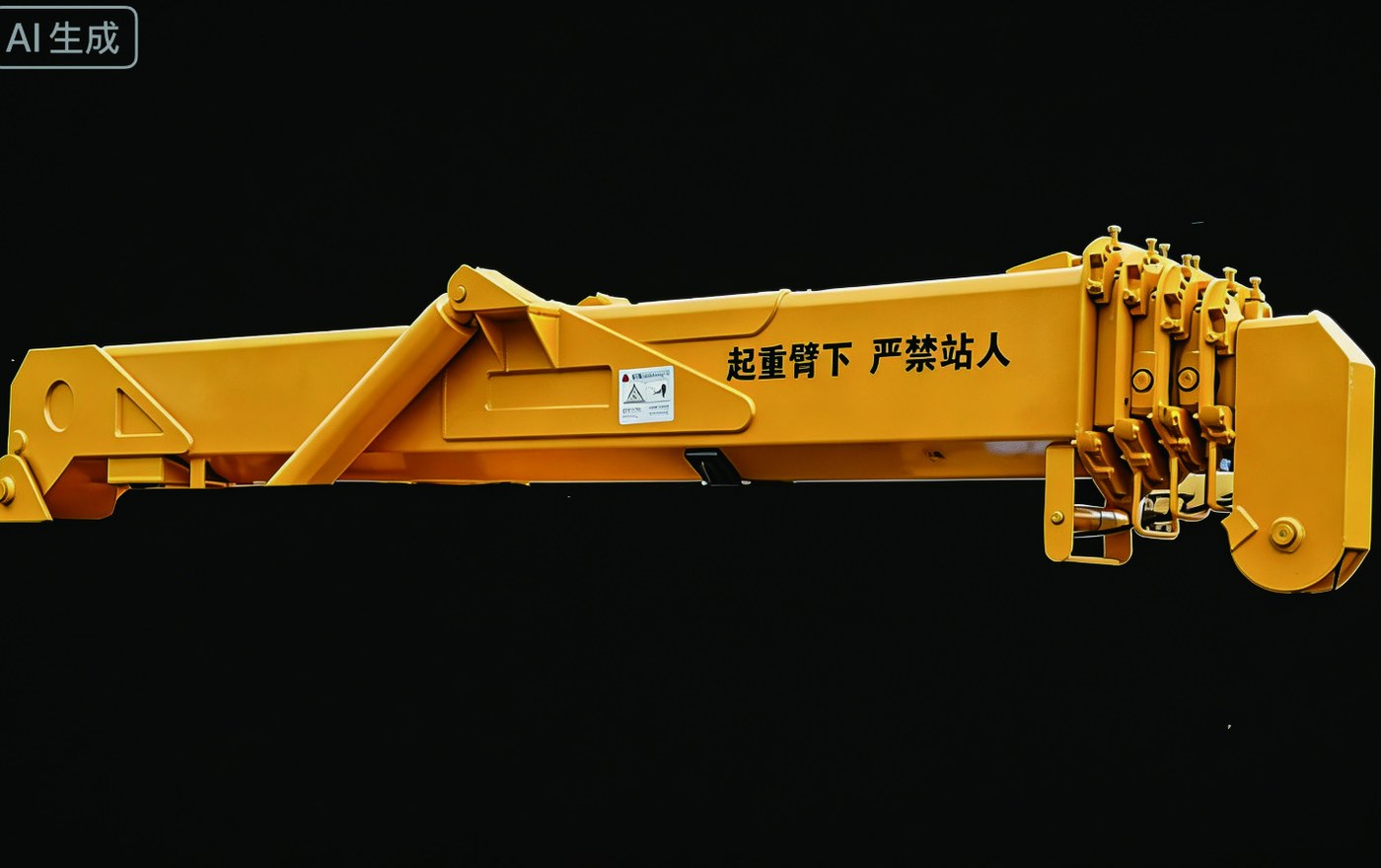

| Boom Form | Hexagonal automatic 5-stage |
| Telescopic Arm Length | 5m-16.8m |
| Boom Angle / Time | 0-78° / 60 sec |
| Rotation | 0-360° continuous / 120 sec |
| Walking Speed | Low 0-0.8 km/h; High 0-2 km/h |
| Climbing Ability | 20° (36%) |

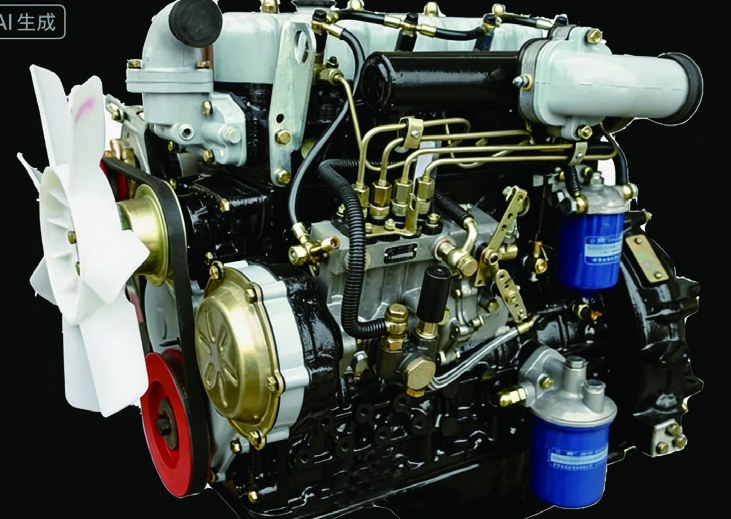

| Engine | YN27GBZ, 58 kW |
| Vehicle Size | 5010 × 1600 × 2200 mm |
