A 45m aerial work platform truck with 400kg platform load, large working radius and 3-section X-type hydraulic outriggers.

A 45m aerial work platform truck with 400kg platform load, large working radius and 3-section X-type hydraulic outriggers.
High-rise maintenance, building façade work, power and telecom maintenance, industrial installation and municipal engineering.
| Chassis | Dongfeng Tianjin / Isuzu |
|---|---|
| Drive Mode | Rear-wheel drive |
| Overall Dimension | 9720 × 2550 × 3920 mm |
| Gross Vehicle Mass | 17700 kg |
| Working Platform Rated Load | 400 kg |
| Maximum Operating Height | 45 m |
| Maximum Working Radius | 28 m |
| Operating Height at Maximum Working Radius | 31 m |
| Working Radius at Maximum Height | 3 m |
| Outrigger Span – Transverse | 8250 mm |
| Outrigger Span – Longitudinal | 8378 mm |
| Working Platform Size | 3200 × 850 × 1200 mm |

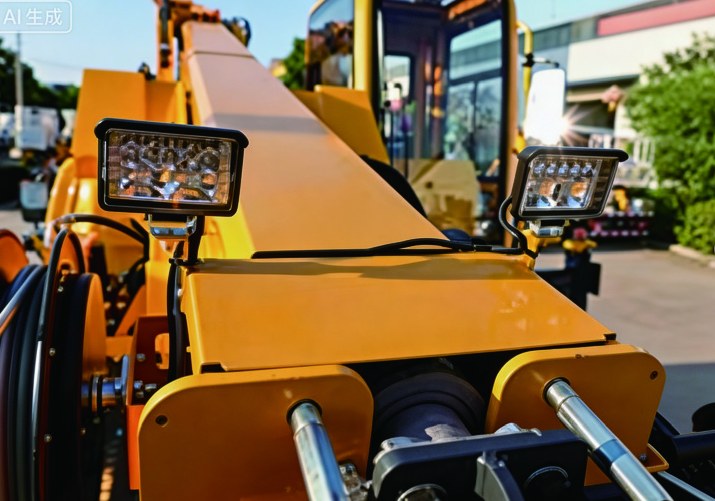

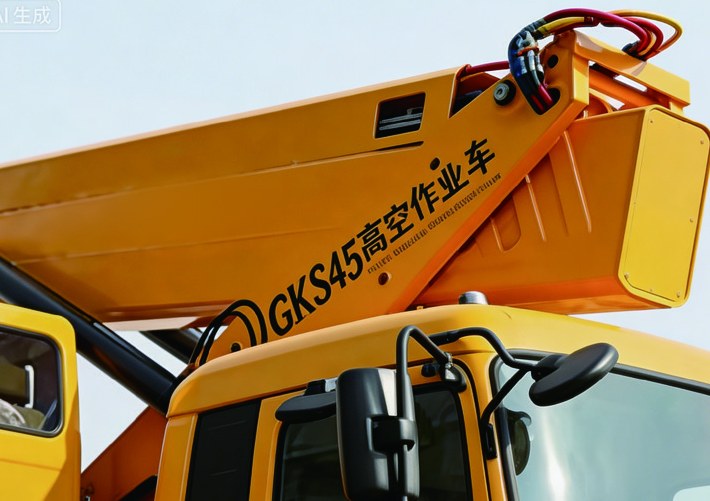

| Boom Type | 7-section hexagonal working boom |

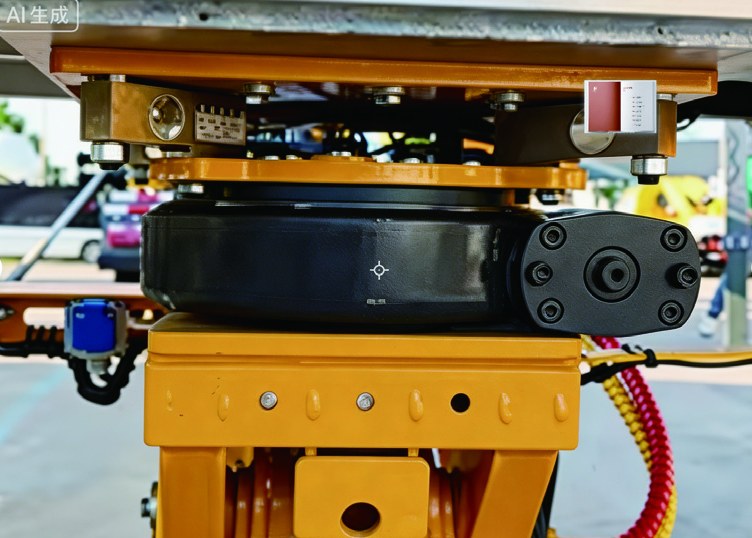

| Slewing Device | 360° continuous rotation |
| Maximum Driving Speed | 98 km/h |
| Control System | CAN bus control system, 24V |
