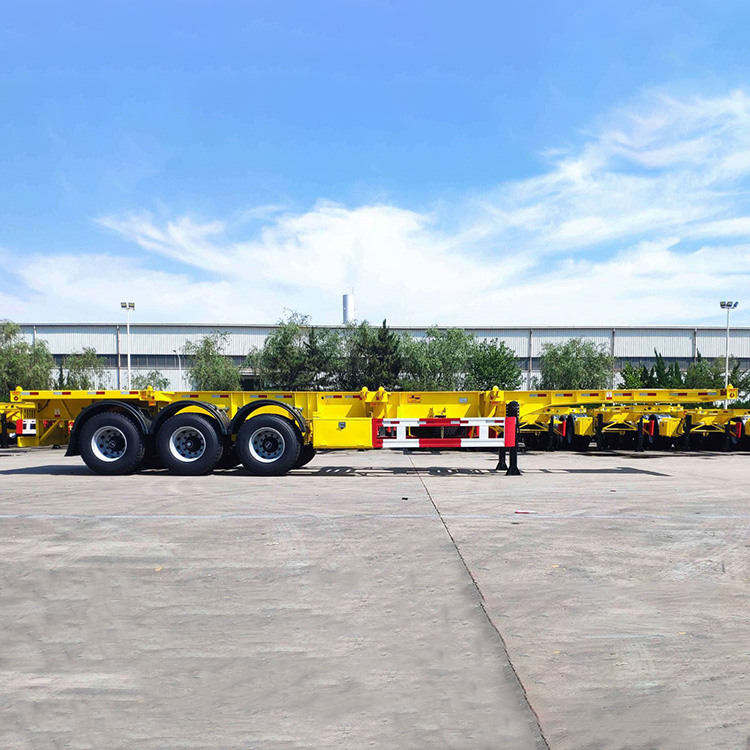

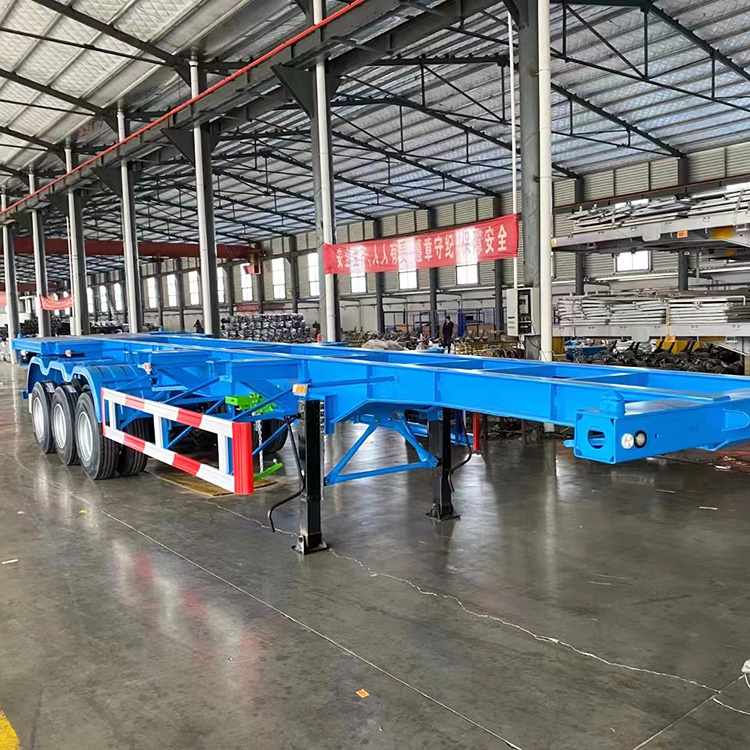

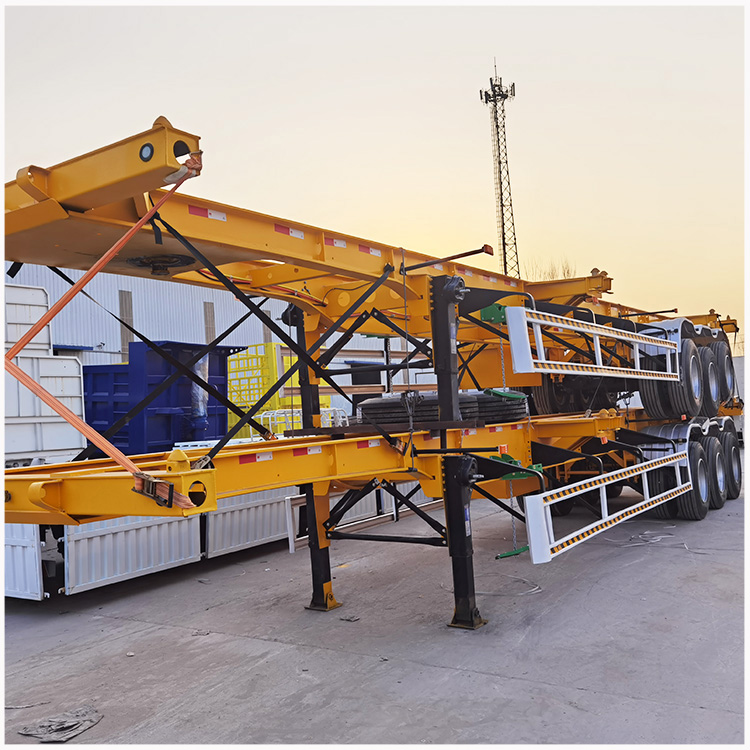

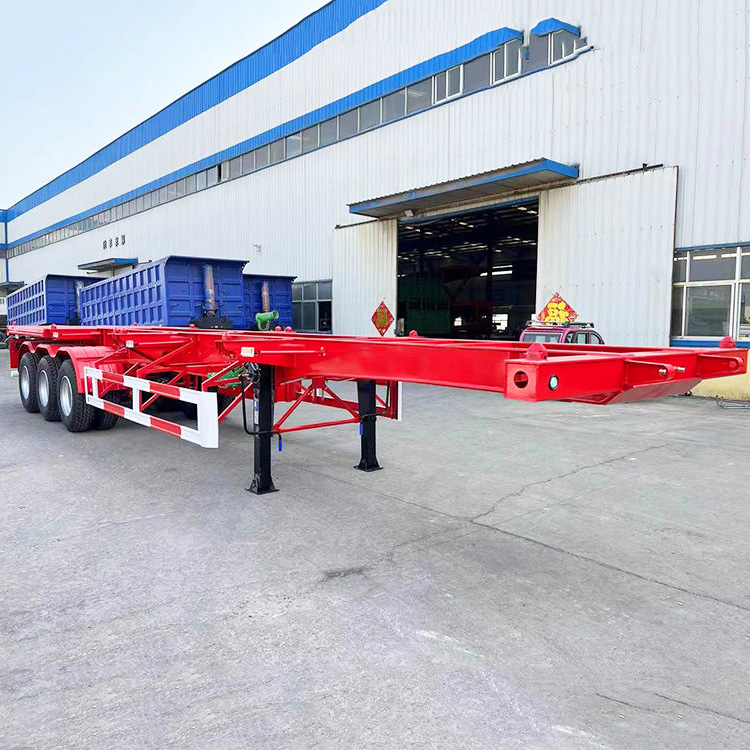

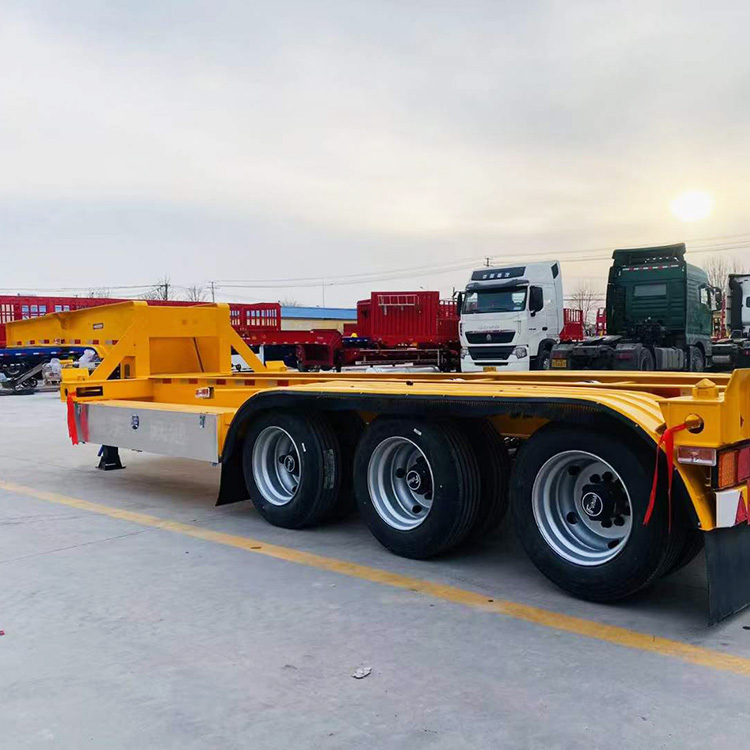

HSTAR skeleton container semi trailer is special designed to carry various cargo containers.You can choose to transport one 20ft,40ft 0r 45 ft container or two 20 ft container at one time.The only difference is the number of locks required for specific transportation application.
| Dimension | 12,500*2450*1450mm(According to customer demand) |
| Playload | 40,000kg |
| Tare weight | 65,000kg |
| Tyre | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
| Rim | 8.00-20/8.5-20/8.8-20 (Patent of electrophoretic paint) |
| King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm,middle plate thickness is 8mm-12mm,down plate thickness is 16mm-25mm;Material is Q345 Carbon Steel. |
| Side beam | 16mm-25mm channel steel (Material is Q235B carbon steel) |
| Cross beam | 80*40mm square tube(Material is Q235B carbon steel) |
| Twist lock | 12sets Enhanced international universal twist locks |
| Landing gear | JOST(D200T)or Yahua brand(two speed or single speed) |
| Axle | 13ton*3 axle FUWA/BPW/Fuhua brand |
| Suspension | mechanical suspension/air suspension |
| Brake chamber | 4 units T30/30 spring brake chambers,2 units T30 brake chambers |
| Emergency valve | WABCO/Fitness brand |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Tool box | 1set standard tool box( waterproof type) |
| Spare wheel carrier | 1 pieces( Patent type) |
| Accessory | A set of tools,An instruction manual |
| ABS system | Optional |
| Color | According to customer demand |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
