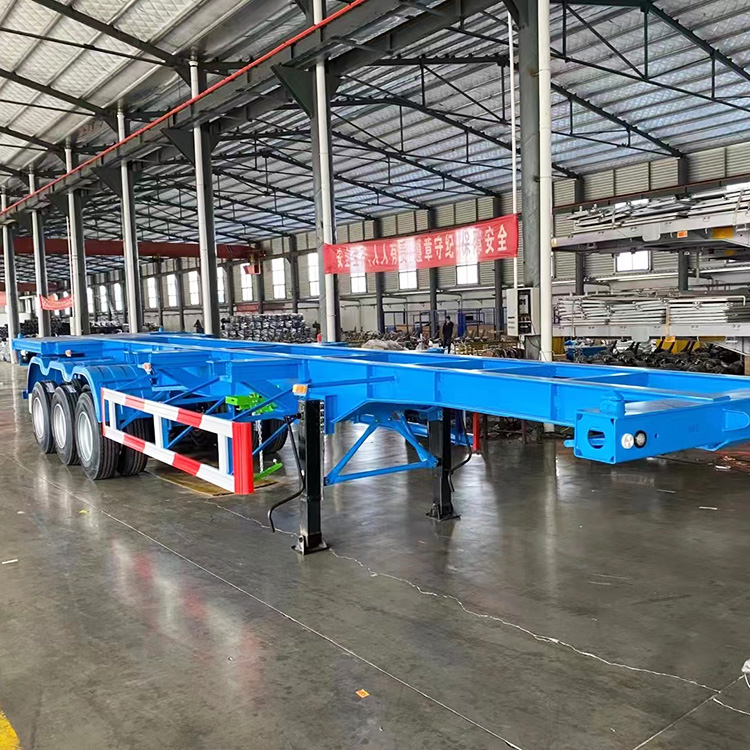

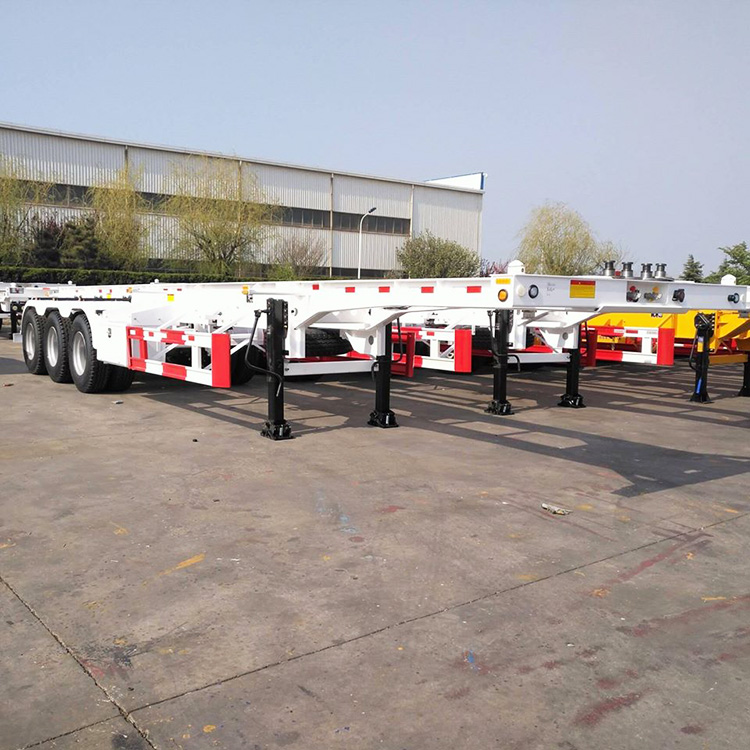

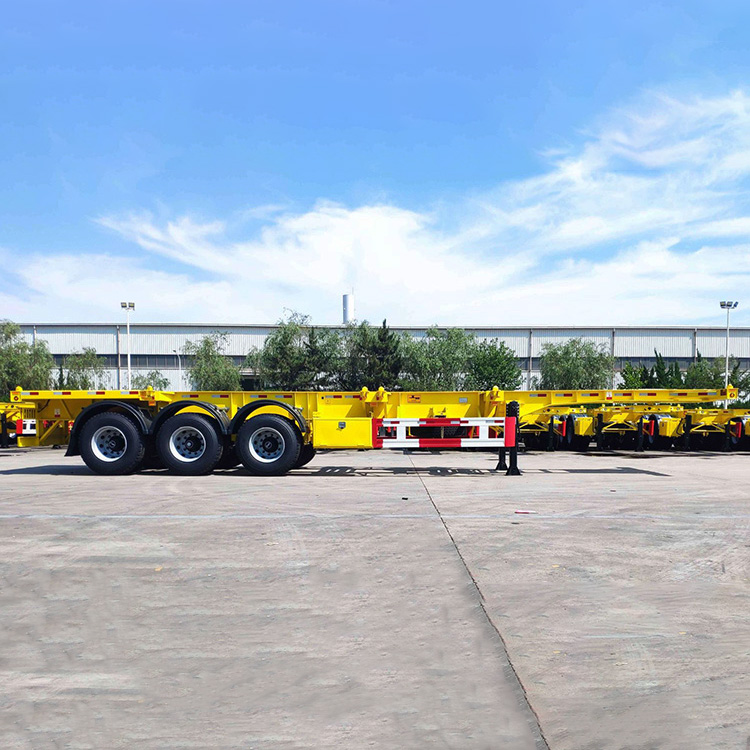

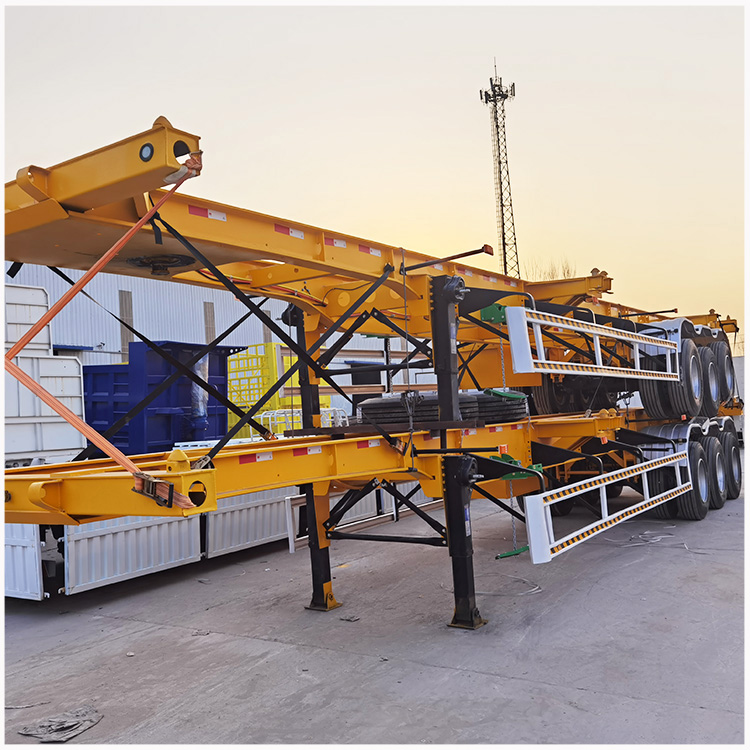

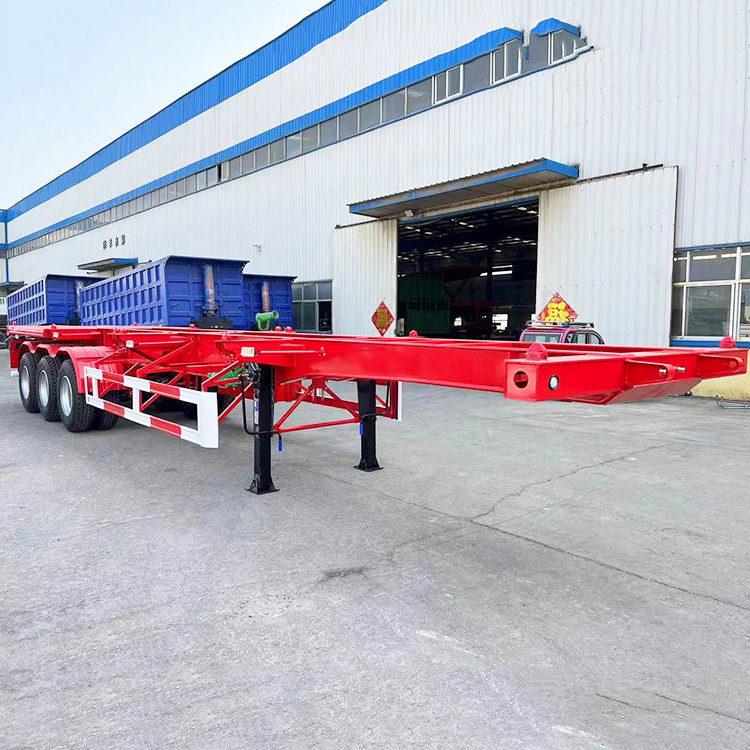

Skeleton semi-trailer dedicated to the transport of various containers, and also can be used to transport bulk cargo and other goods . It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
We use high quality tensile steel to reduce beam fracture probability. The main beam is opting for high tensile steel Q345B and axle can be selected of BPW or FUWA brand. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
| Specification For Skeleton Semi Trailer | |
|---|---|
| Type | Skeleton semi trailer |
| Tare Weight | Approx. 6.2 T |
| Dimension | 12400*2500*1550mm |
| Loading Capacity | 30-100 T |
| Axle | 13T/16T, FUWA/BPW/SHENGRUN, etc |
| Rim | 9.00*22.5/8.00-20/8.5-20 |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| Suspension | Mechanical suspension(Germany type or America type) or Air suspension |
| Leaf Spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| King pin | Jost brand 2.0 or 3.5 inch |
| Spport leg | Jost brand two speed |
| Main beam | Material is Q345B steel |
| Side beam | 16mm channel steel (Material is Q235B steel) |
| Bottom Platform | 3mm checquered steel plate |
| Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
| ABS | Optional |
| Twist locks | Four, eight or twelve pieces(Lifting type or twist screw type) |
| Valve | Wabco valve (especial for exporting market) |
| Light | LED Light (especial for exporting market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Painting | 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
| Shipping terms | By bulk vessel, RORO, or 40HQ container |
| Any parts fitted could according to clients request, contact us to get more. | |
