- Different length available.
- Type: straight, gooseneck etc.
- Platform extendable.
- Twist lock available.
- Rear dump available.
- Columns available.
- Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.

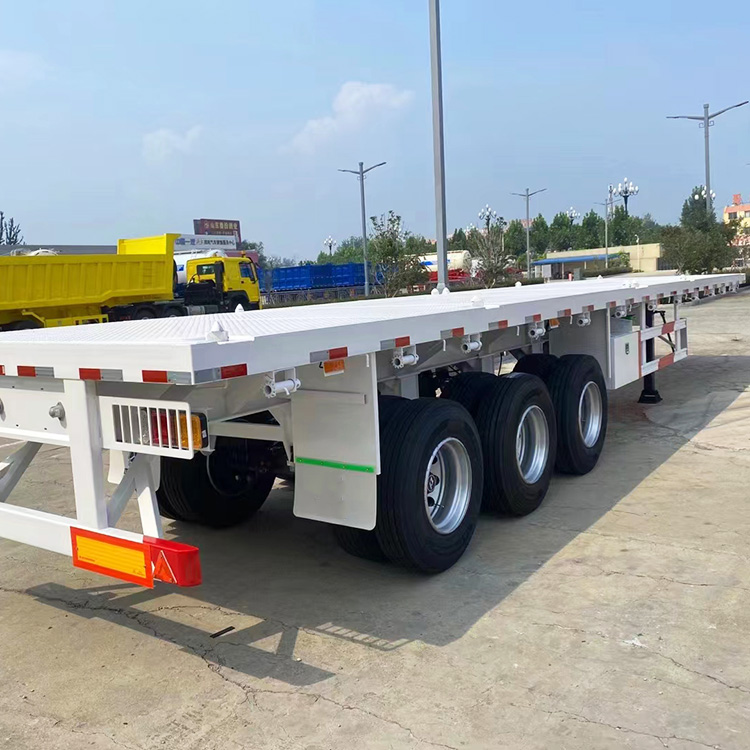

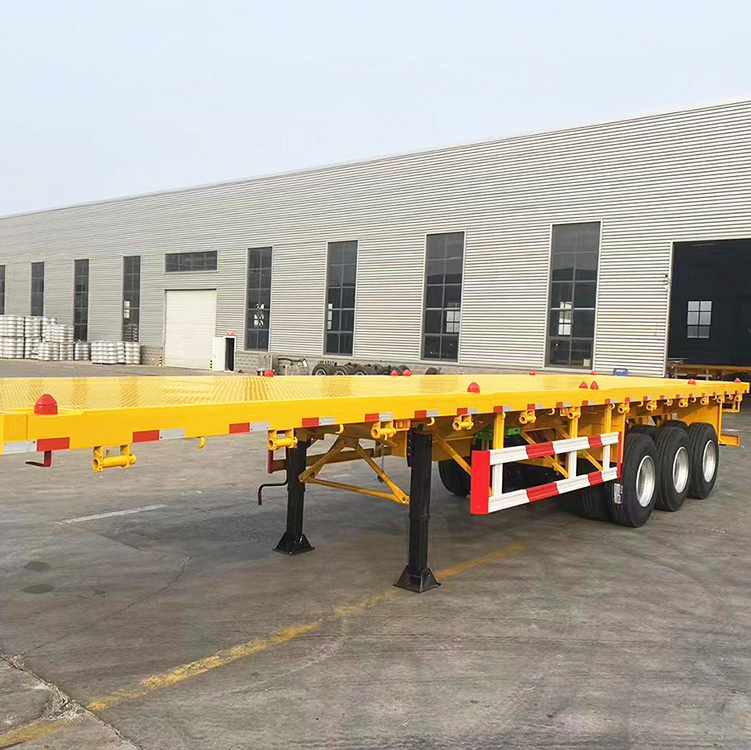

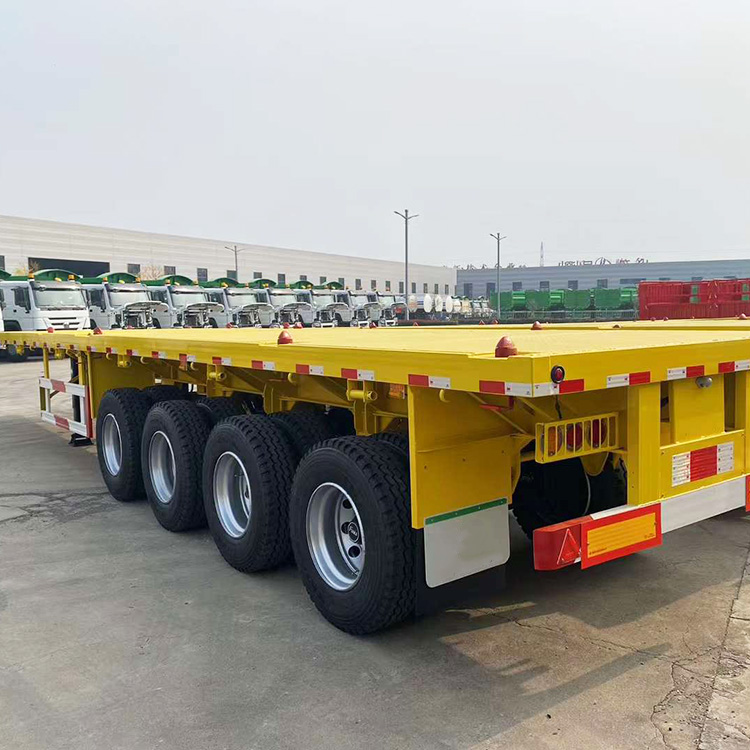

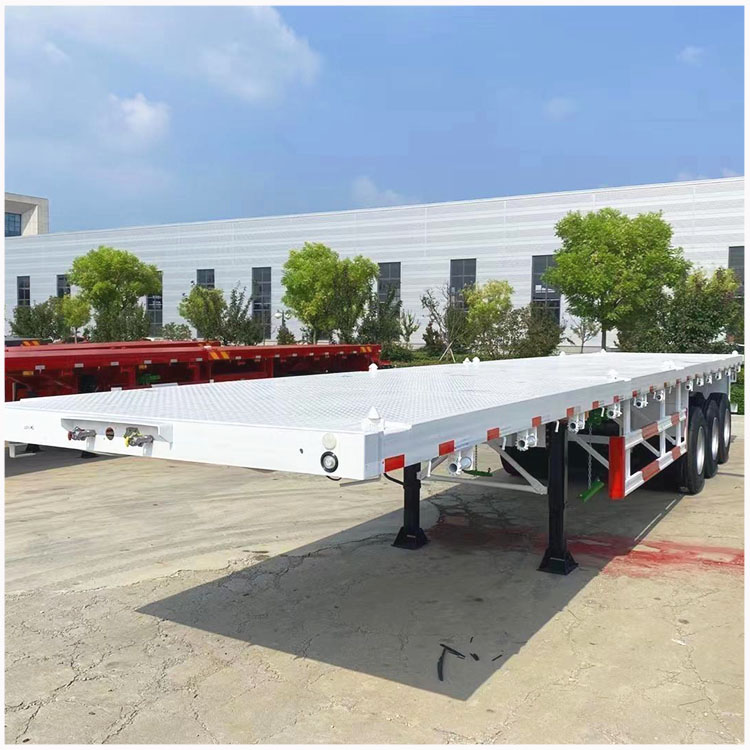

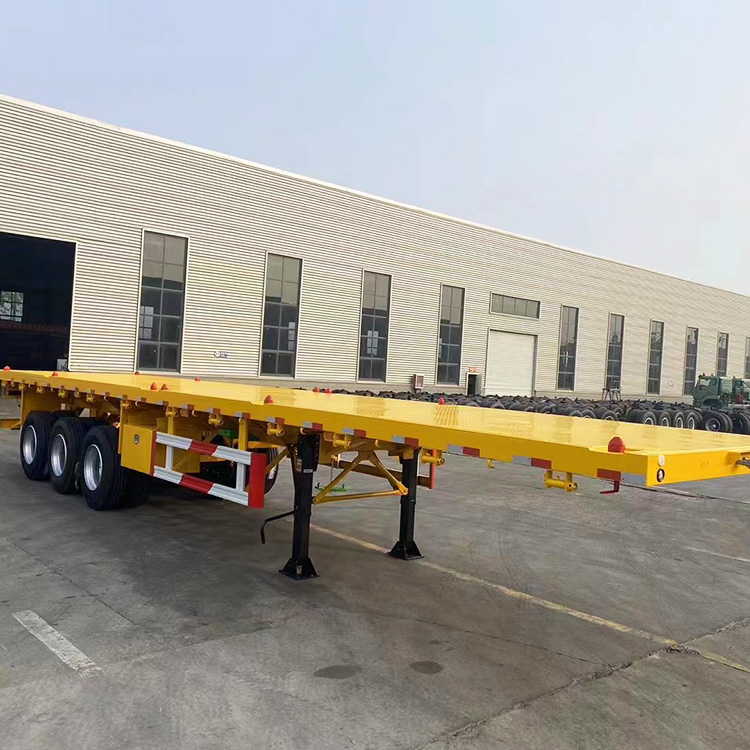

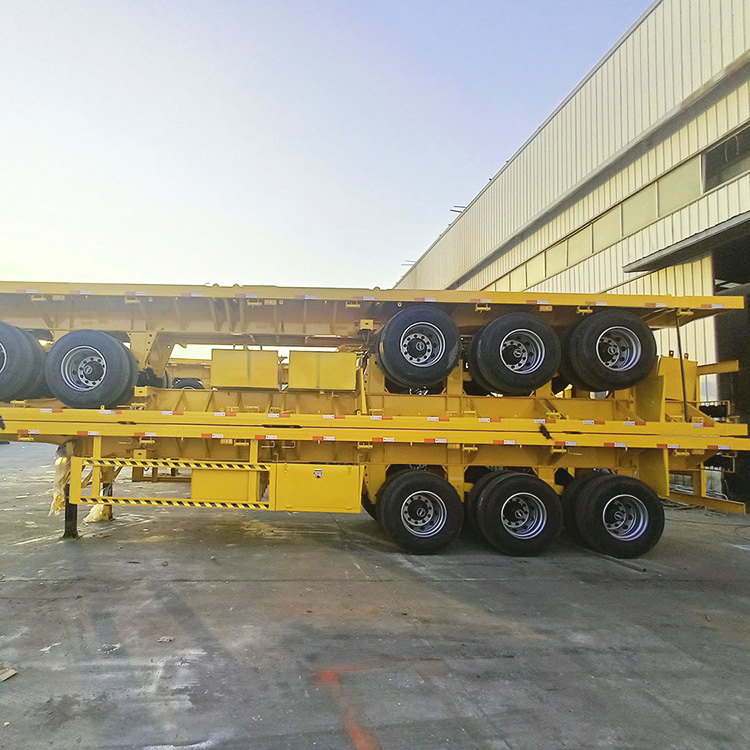

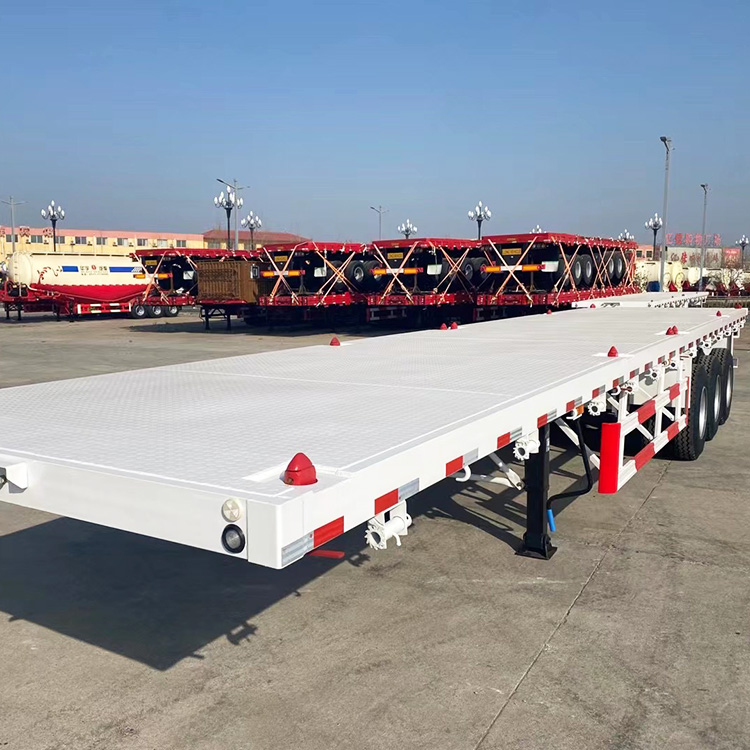

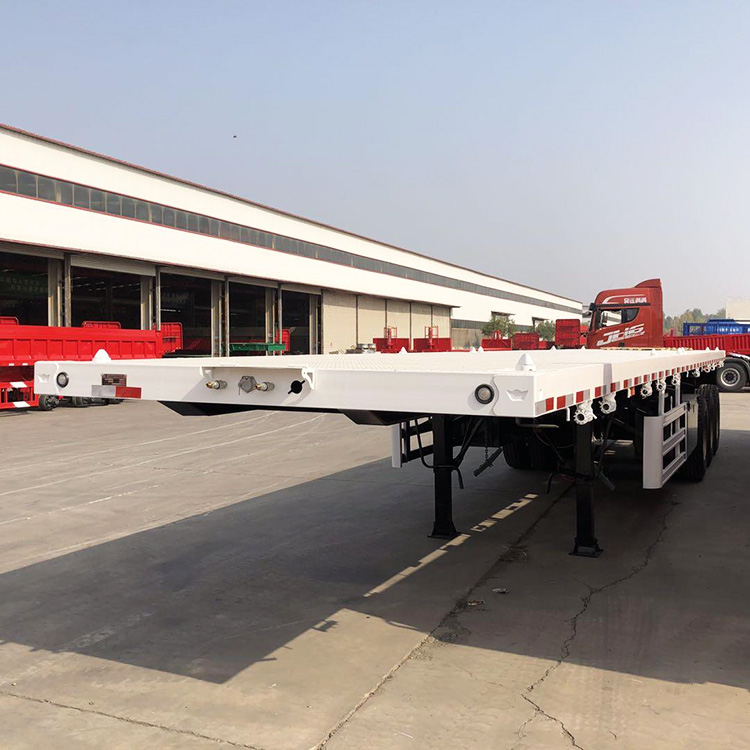

| Flatbed Semi Truck Trailer Technique Dates | |
|---|---|
| Dimension (mm) | 12400mm*2480mm*1480mm or customized size |
| Tare Weight | 6.5-7Ton |
| Payload | 40T-60T |
| Main Beam | Q 345 Carbon Steel, Beam height 500 mm, Upper plate 14 mm, Down plate 16 mm, Middle plate 6/8 mm |
| Platform | 3mm checkered Plate |
| Twist Locks | 4 pcs or 8 pcs or 12 pcs container lock |
| Axles | 13T16P 2/3/4 pcs, BPW or FUWA etc. |
| Leaf Spring | 90*13-10 4/6/8 sets, Funiu or Taiyue etc. |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Tire | 12R22.5-18, 12 pcs |
| Landing Gear | Standard 28Ton, JOST brand or FUWA etc. |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 40L air tanks, ABS Optional |
| Electrical system | 1. Voltage:24V， LED lights2. Tail lamp with turn signal, brake light & reflector, side lamp etc.3.Receotacle: 7 wire |
